Fuel Injector Reseal Kit, Audi 3.0T Supercharged

Vorsprung Autowerk: 3.0T Supercharged Injector Reseal Kit

If you’ve pulled your supercharger, you’ve likely noticed those fuel injectors are often stuck fast in the lower intake runners. When they finally pop out, the factory seals are usually brittle, charred, or flattened.

Reinstalling fuel injectors with old seals is a recipe for disaster. Whether you’re chasing a misfire, upgrading your injectors, or performing a "valley" service, the Vorsprung Autowerk Injector Reseal Kit is a non-negotiable maintenance must.

Why You Can’t Skip This

The 3.0T is a Direct Injection (DI) engine. That means your injectors are subjected to extreme combustion chamber pressures and intense heat.

• The Combustion Seal: The white Teflon/PTFE seal at the tip is the only thing stopping high-pressure combustion gases from blowing past the injector. Once removed, these seals "relax" and lose their shape; they cannot be reused.
• The Fuel Rail O-Ring: The upper Viton O-ring holds back fuel rail pressures that can exceed 2,000 PSI. A degraded ring is a fire hazard waiting to happen.

• The Spacer & Clip: Heat cycles make the plastic support components brittle. If they crack, the injector won't sit at the correct depth, leading to poor spray patterns and carbon buildup.

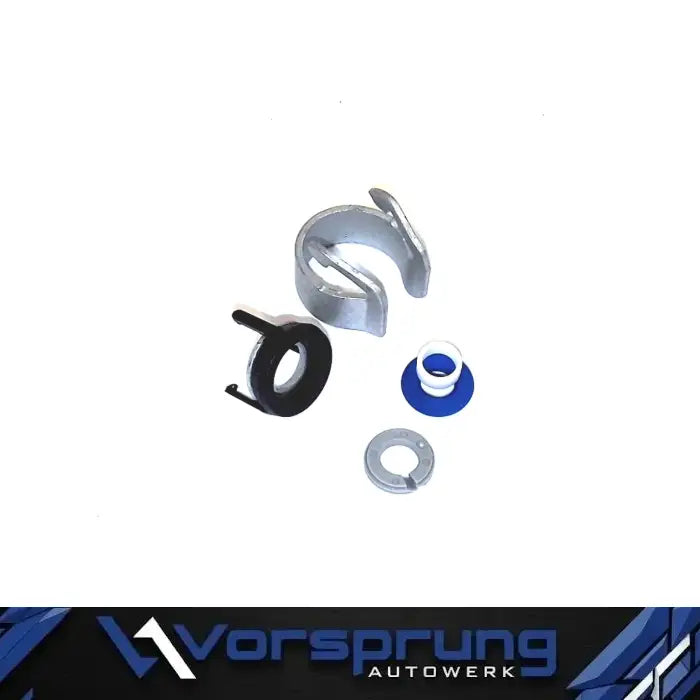

What’s in the Kit?

Each kit provides enough components to refresh a full set of 6 injectors, including:

• High-Temp Viton O-Rings: Superior chemical resistance to modern ethanol-blended fuels.

• PTFE Combustion Seals: Engineered for high-compression durability.

• Support Spacers & Tension Clips: To ensure perfect injector alignment and seating.

The Vorsprung Advantage

Don't get stranded with a "lean" code or a fuel leak because you tried to save a few bucks on old rubber. Our kit provides OEM-quality sealing components without the "dealership markup" per injector.

Pro-Tip: Proper installation of the Teflon combustion seals requires a seal sizing tool.

Installation Guide: https://drive.google.com/file/d/1pf5ywYTfMJ8iMYG3QZ92AMwdyCBF5GmH/view?usp=sharing

Fitment:
