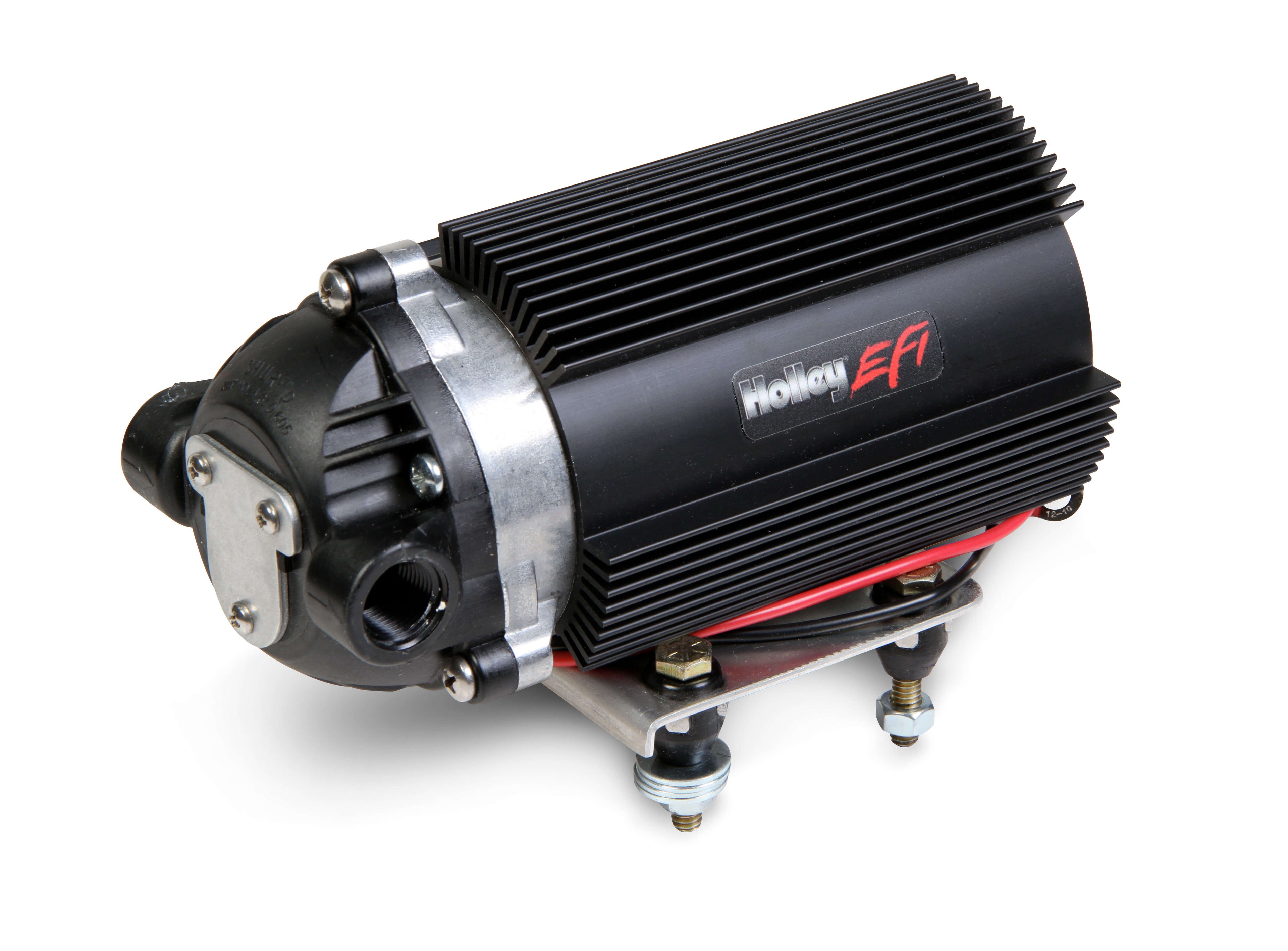

Water Methanol Pump
The Holley 557-100 is the pump for Holley EFI water/methanol injection. It is built for this job, not an agricultural sprayer pump with a new label, and it feeds the solenoid/nozzle assemblies that the Holley HP or Dominator ECU controls.
The system is not standalone. It needs a Holley HP or Dominator EFI system, the 557-101 installation kit, and at least one solenoid/nozzle assembly, all sold separately.
Fitment and requirements
- Holley HP or Dominator EFI ECU with the water/methanol outputs configured
- 557-101 installation kit: high-current relay with wiring and fuse, filter, tank-to-pump and pump-to-solenoid tubing, low-fluid float and warning LED
- Solenoid/nozzle assembly: 557-103 (600 cc/min, about 400 hp), 557-105 (900 cc/min, about 600 hp) or 557-106 (1000 cc/min, about 800 hp). Two can be run with a T-fitting.
- 554-115 two-channel driver if the ECU has no spare injector driver output
- A reservoir mounted higher than the pump; the pump inlet must sit below the tank outlet
What it does
- Supplies pressurized water or water/methanol to the injection solenoids
- Internal bypass limits pressure to 145 psi
- Self-priming up to 9 ft vertical
- Rated for continuous duty
- Switched by a relay that the ECU W/M Pump Activate output grounds
Installation and limitations
The pump weighs 4.5 lb, so bolt it down solidly. Wire the relay exactly as the instructions show: battery to the relay, relay to the pump red wire, pump black wire to a clean chassis ground. A wrong relay hookup can damage it.
Run 100 percent water or a water/methanol mix up to 50/50. More than 50 percent methanol can damage the pump and solenoids. Washer fluid is a common choice. Keep brass, aluminum, steel, natural rubber and silicone out of the fluid path.
Full details: Holley water/methanol instructions (PDF) and 557-100 spec sheet (PDF).
Specifications
- Part number: 557-100
- Brand: Holley
- Voltage: 12V DC nominal
- Current draw: 7.5 A at 140 psi
- Bypass pressure: 145 psi max
- Max inlet pressure: 30 psi
- Max fluid temperature: 180 F
- Ports: 3/8-18 NPT female, inlet and outlet
- Weight: 4.5 lb
Frequently asked questions
Does the Holley 557-100 pump work without a Holley EFI system?
No. The pump is switched by the Holley HP or Dominator ECU and the solenoids are run by its injector outputs.
What else do I need besides the 557-100 pump?
The 557-101 installation kit and at least one solenoid/nozzle assembly (557-103, 557-105 or 557-106) sized to your power level.
Can I run straight methanol?
No. Holley rates the parts for up to a 50/50 water/methanol mix.
Where does the pump mount?
Below the reservoir outlet so the tank gravity-feeds it, bolted down firmly.
