Aeromotive Phantom Return Style Fuel Pump and Hat (internal return) 340LPH

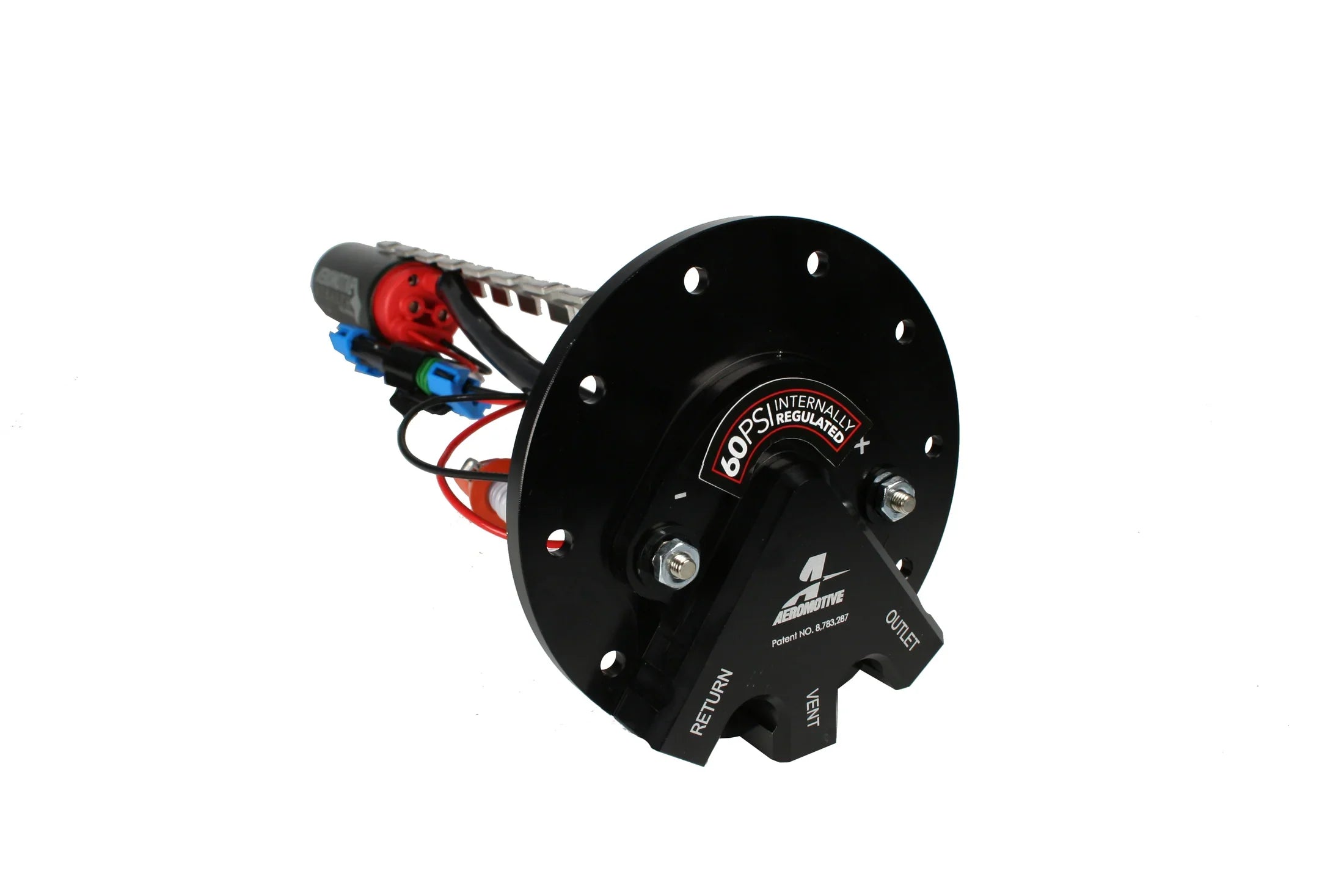

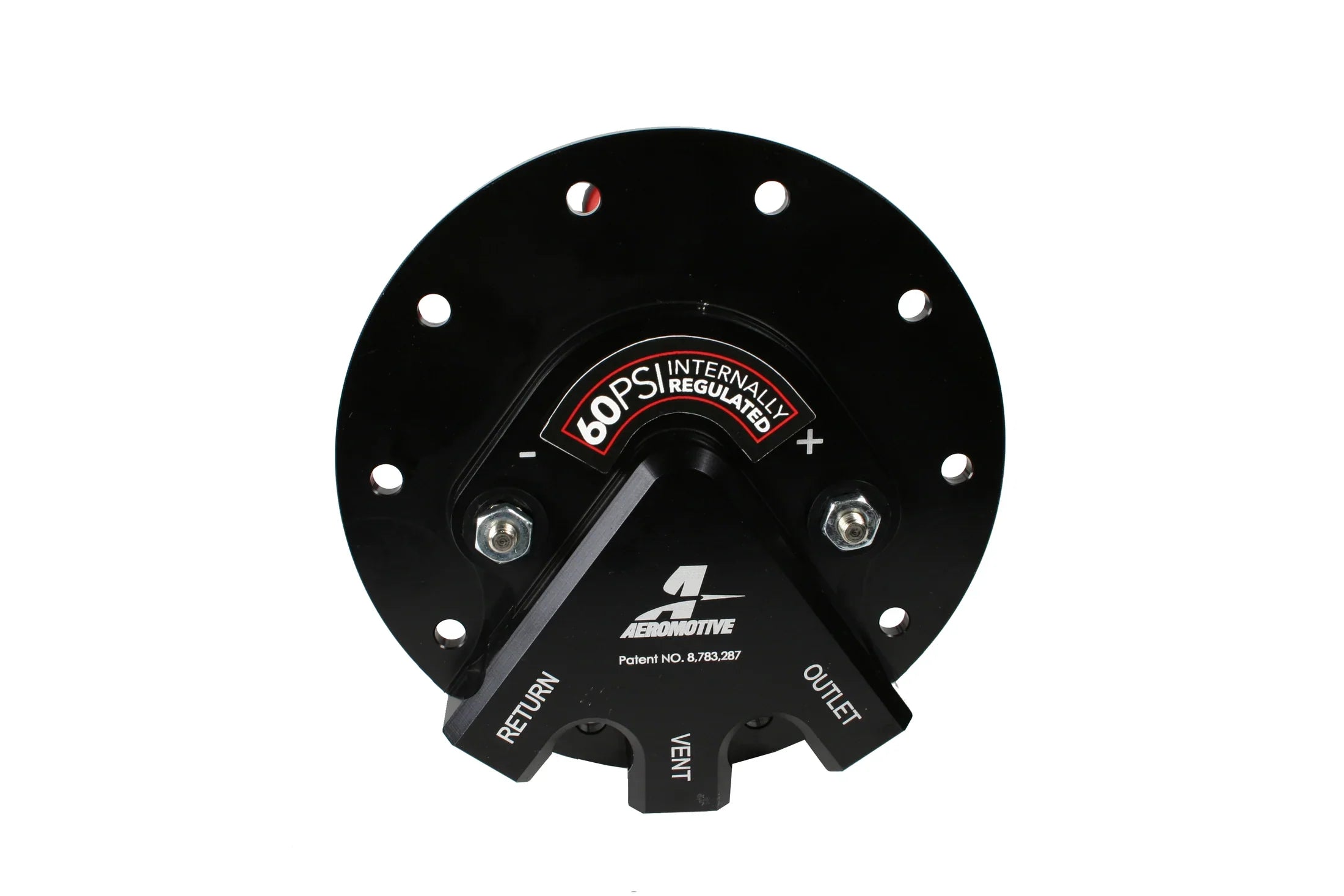

Aeromotive Phantom 340LPH Fuel hat. This particular fuel hat has a built in regulator in the fuel hat that regulates and internally returns at 58psi. The benefits to this hat is you only need to run a feed line up to the engine bay. No need for a return line!

Set up for -6 AN fuel line. Adapter fitting available to run -8AN if desired. Fuel Pump is rated for 700 FLYWHEEL HP. E85 Compatible.

NOTE: NOT FOR BOOSTED APPLICATIONS- Naturally Aspirated only.

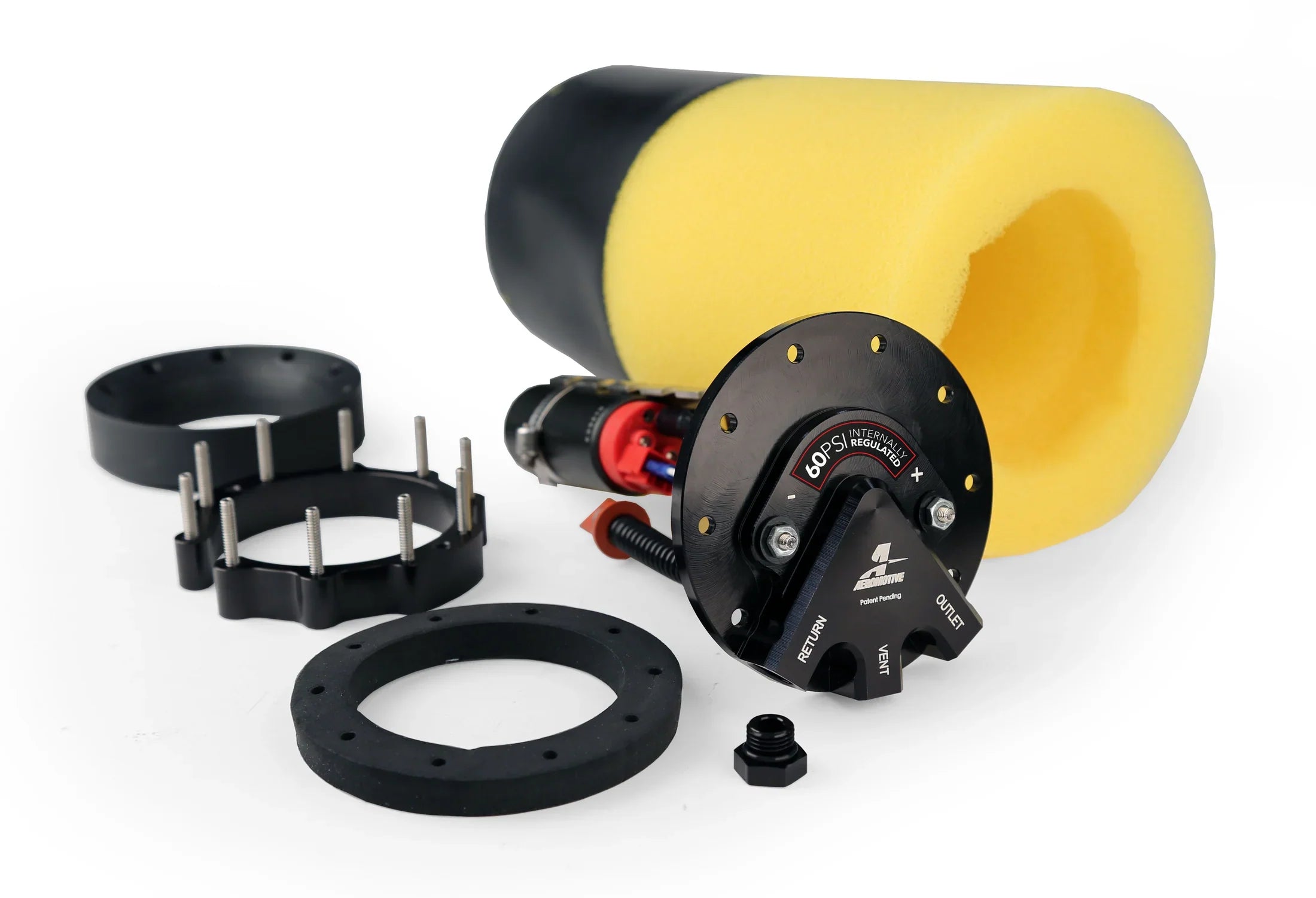

Comes with install template. Will install in any fuel cell or tank that has a flat area for this to mount. The yellow foam sock is the baffle which helps keep the fuel surrounding the pump.

INSTRUCTIONS- https://prod-da.s3.us-east-2.amazonaws.com/BHKJ/90c637c5c06bca7616ac02257e18c071.pdf
